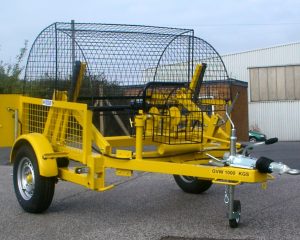

CD20 Cable Drum Trailer
Please Note! The Cage on model shown is not supplied as standard
The protective cage on the model shown is available to UK & EU based customers only.
CD20
Technical Specification
Axle Type
Single Axle
Payload (Approx.)
830Kgs
Gross Vehicle Weight
1100Kgs
Maximum Drum Width
1075mm
Drum Diameter
1070mm Max, 570mm Min
Spindle Diameter
50mm
Tow Eye/Coupling Height
40/590
Trailer Width
1925mm
Towing Speed
100Kmh
Tyres
155-80R-13
Brake System
Overrun Auto Reverse
Please note!
For more details on the product please call us on 01623 754 490
